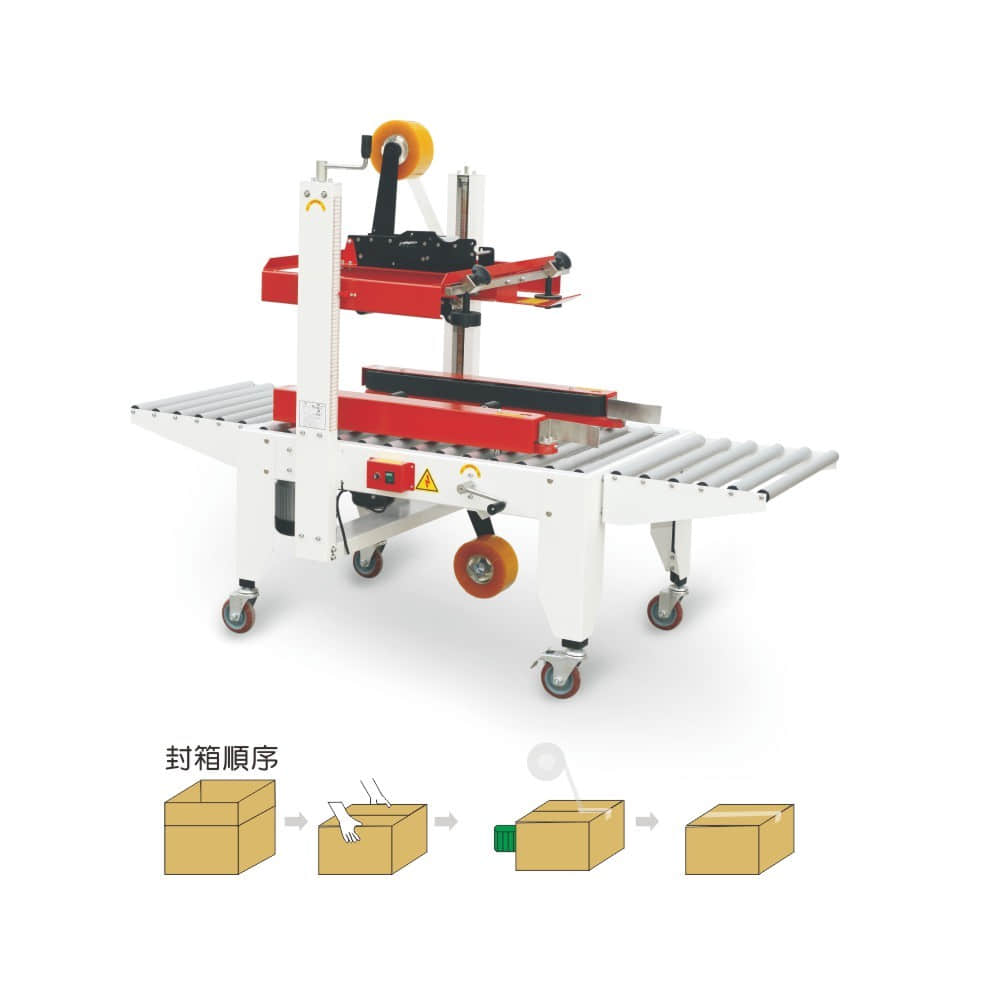

Semi-Automatic Two sides Belt Driven Carton Sealer
- Minimum box size: L150*W120*H130mm
- Maximum box size: L∞*W500*H500mm
- Belt speed: 20m/min
- Machine dimensions: L1000*W880*H1330mm
- Power supply: 220/380V 50Hz
- Power consumption: 0.2KW
- Applicable tape width: W48, 60, 75mm (optional)
- Machine weight: 120KG
Description
Model: SDW-FA500
Machine Features:
Suitable for narrow and lightweight cartons
Manual width and height adjustment when changing specifications
Bottom dual side belt drive system
Can be used with a machine or standalone, manually folding the top cover, completing the "I"-shaped (carton’s middle-line) sealing of the top and bottom in one go.
Standard working height 600mm
Precision and durable tape head, smooth operation, long service life
Custom specifications available upon request
Notes:
All dimensions are in millimeters (mm)
Belt speed in meters per minute (m/min)
L∞ indicates unlimited length capacity
