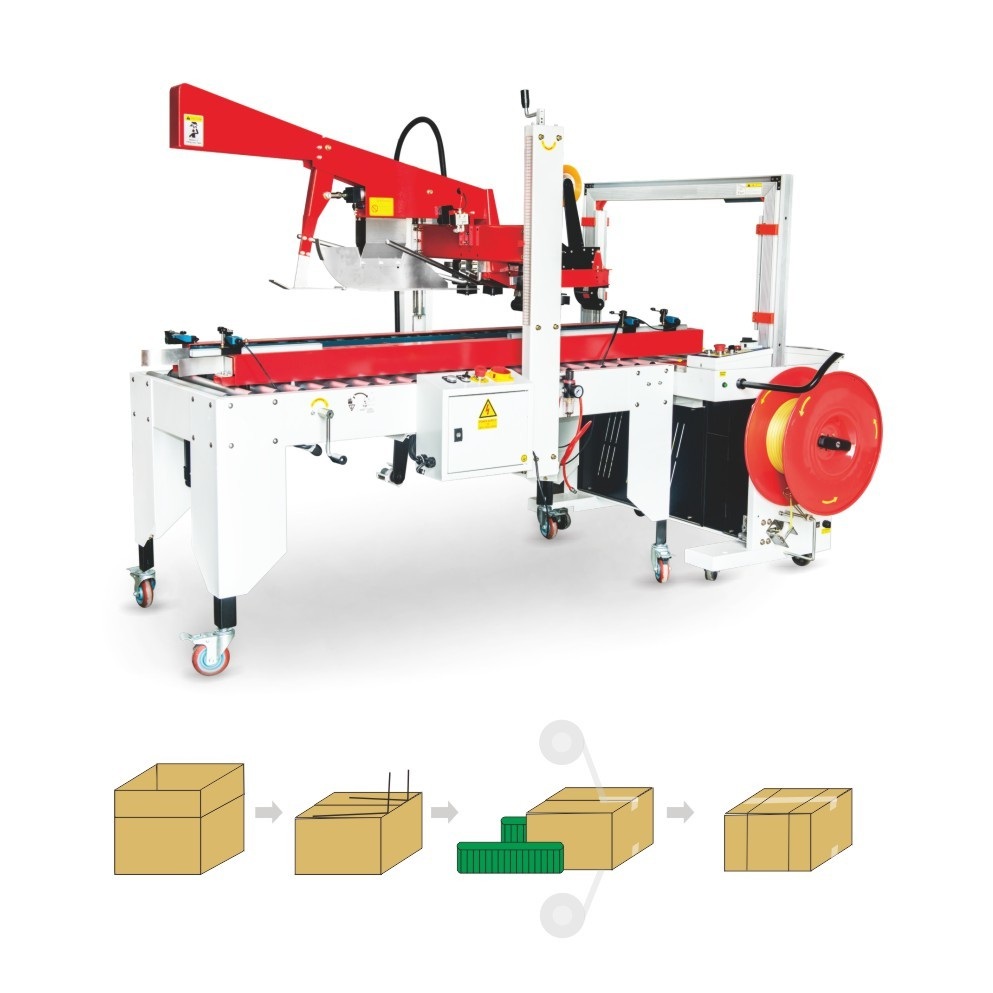

Semi-Auto Carton Folding And Strapping Machine
- Specifications:
- Minimum box size: L250*W150*H150mm
- Maximum box size: L600*W500*H500mm
- Power supply: 220V/380V 50Hz
- Air supply: 6kgf/cm², 40nl/min
- Power consumption: 0.9KW
- Applicable tape width: W48, 60, 75mm (optional)
- Strapping requirements: Width 9-15mm, Thickness 0.55-0.8mm
Description
Model: SDW-FP500C+301A
Product Features:
Most economical combination for automatic flap folding, sealing, and strapping functions
Manual width and height adjustment when changing specifications
Bottom dual side belt drive system
Automatic top flap folding, completes sealing and strapping in one pass
Sealing machine includes automatic positioning control for integration with strapping machine
Standard working height 450/770mm (optional)
Precision and durable tape head, smooth operation, long service life
Custom specifications available upon request
Notes:
All dimensions in millimeters (mm)
Air pressure requirement: 6kgf/cm²
Air consumption: 40nl/min
Strapping band specifications:
Width: 9-15mm
Thickness: 0.55-0.8mm
