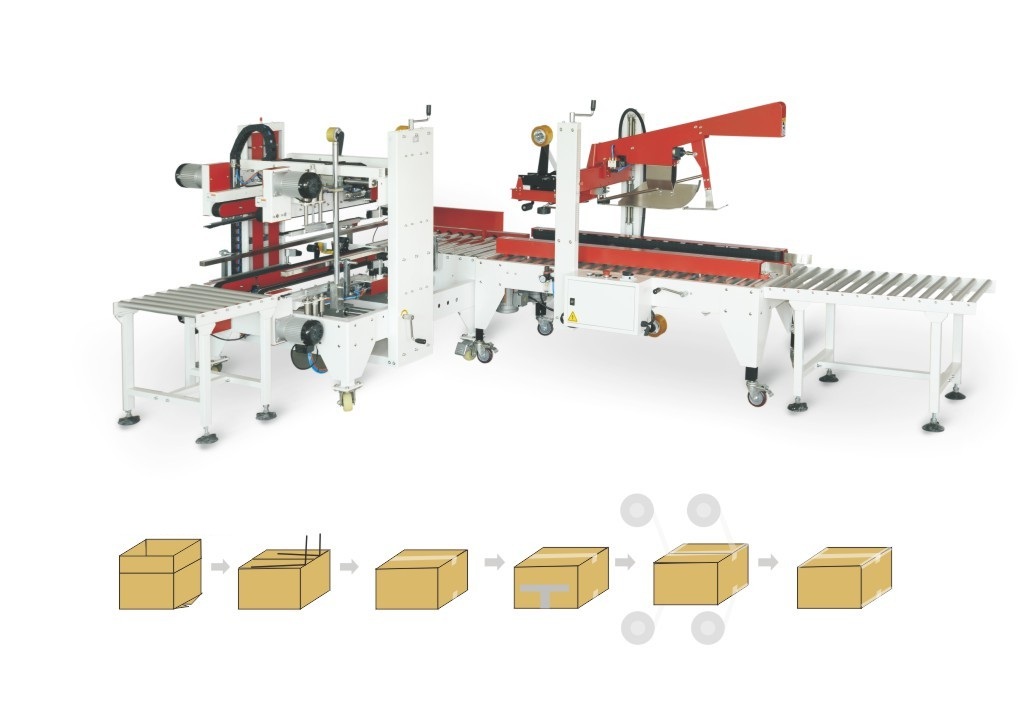

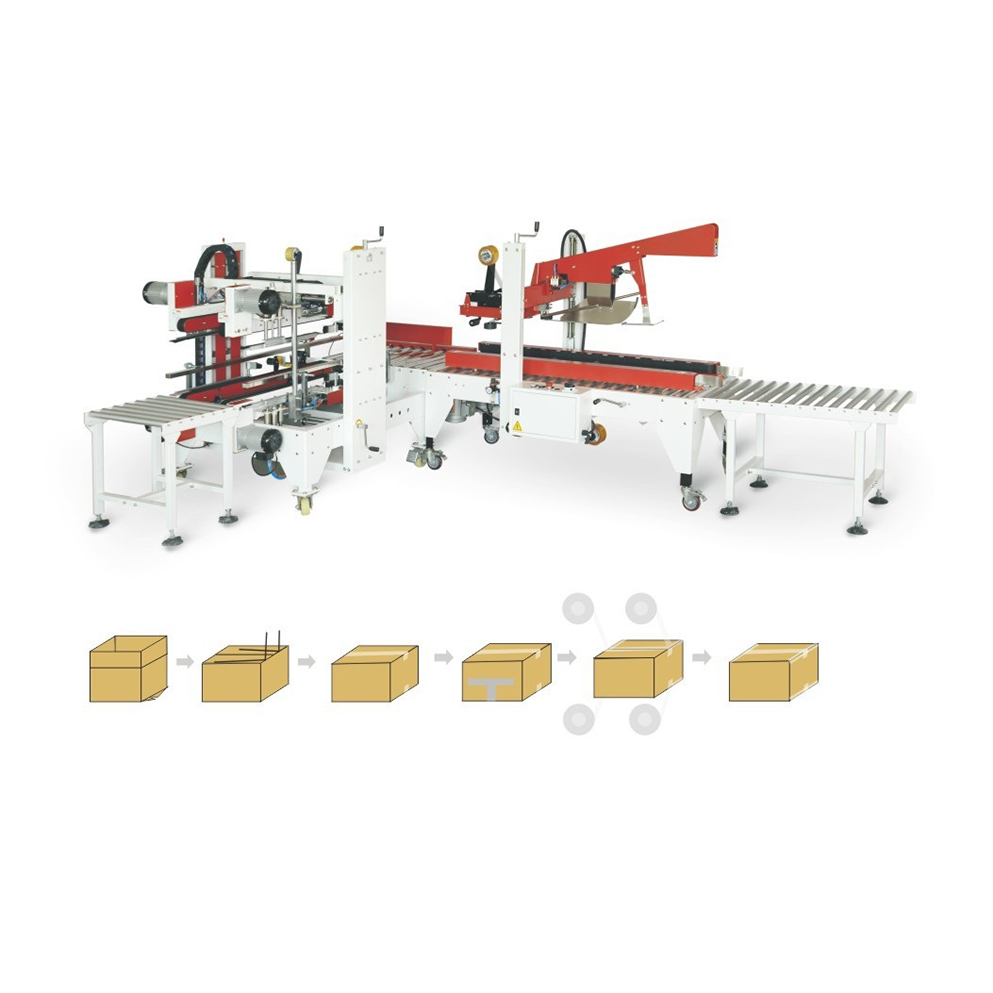

Semi-Automatic "L-Shape" Carton Sealer with Flap Folding
- Specifications:
- Minimum box size: L340*W200*H180mm
- Maximum box size: L600*W500*H500mm
- Sealing speed: 6-8 boxes/min
- Machine dimensions: First unit: L1700*W930*H1510mm Second unit: L1910*W1150*H1500mm
- Power supply: 220/380V 50Hz
- Air supply: 6kgf/cm², 100nl/min
- Power consumption: 1.0KW
- Applicable tape width: W48, 60, 75mm (optional)
Description
Product Features:
◆ Combination of automatic flap folding "I-shape" sealer and four-corner "L-shape" sealer in inline configuration
◆ L-shaped inline process, standard machine turns left when facing the entrance; right-turn configuration requires custom order
◆ Suitable for batch processing of same-size boxes, manual width and height adjustment when changing specifications
◆ Standard working height 620mm
◆ Custom specifications available upon request
Notes:
All dimensions are in millimeters (mm)
Air pressure requirement: 6kgf/cm²
Air consumption: 100nl/min
Processing speed: 6-8 boxes per minute
Features automatic flap folding system for improved efficiency
