Semi-Automatic L-Shaped Carton Sealers
- Specifications: Minimum box size: L340*W200*H180mm
- Maximum box size: L700*W500*H500mm
- Sealing speed: 6-10 boxes/min
- First unit: L1000*W880*H1330mm
- Second unit: L1910*W1150*H1500mm
- Power supply: 220/380V 50Hz
- Air supply: 6kgf/cm², 100nl/min
- Power consumption: 0.8KW
- Applicable tape width: W48, 60, 75mm (optional)
Description
Model: SDW-FA500 + SDW-FG500L
Product Features:

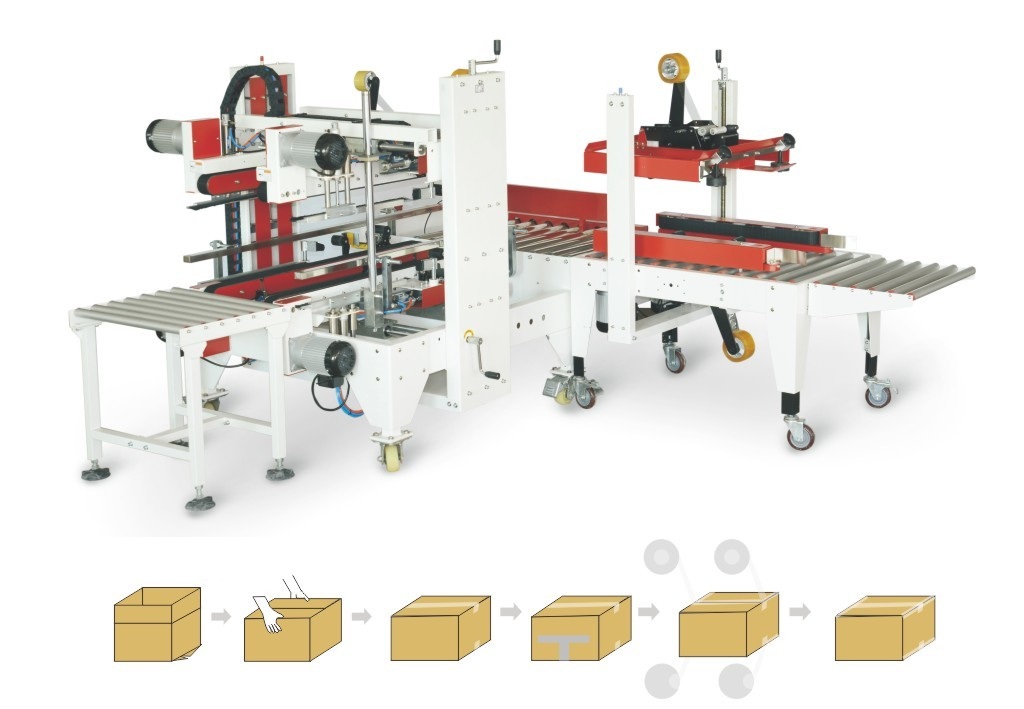

◆ Combination of manual top flap "I-shape" sealer and four-corner "L-shape" sealer in inline configuration
◆ L-shaped inline process, standard machine turns left when facing the entrance; right-turn configuration requires custom order
◆ Suitable for batch processing of same-size boxes, manual width and height adjustment when changing specifications
◆ Standard working height 620mm
◆ Precision and durable tape head, smooth operation, long service life
◆ Custom specifications available upon request
Notes:
All dimensions are in millimeters (mm)
Air pressure requirement: 6kgf/cm²
Air consumption: 100nl/min
Processing speed: 6-10 boxes per minute
