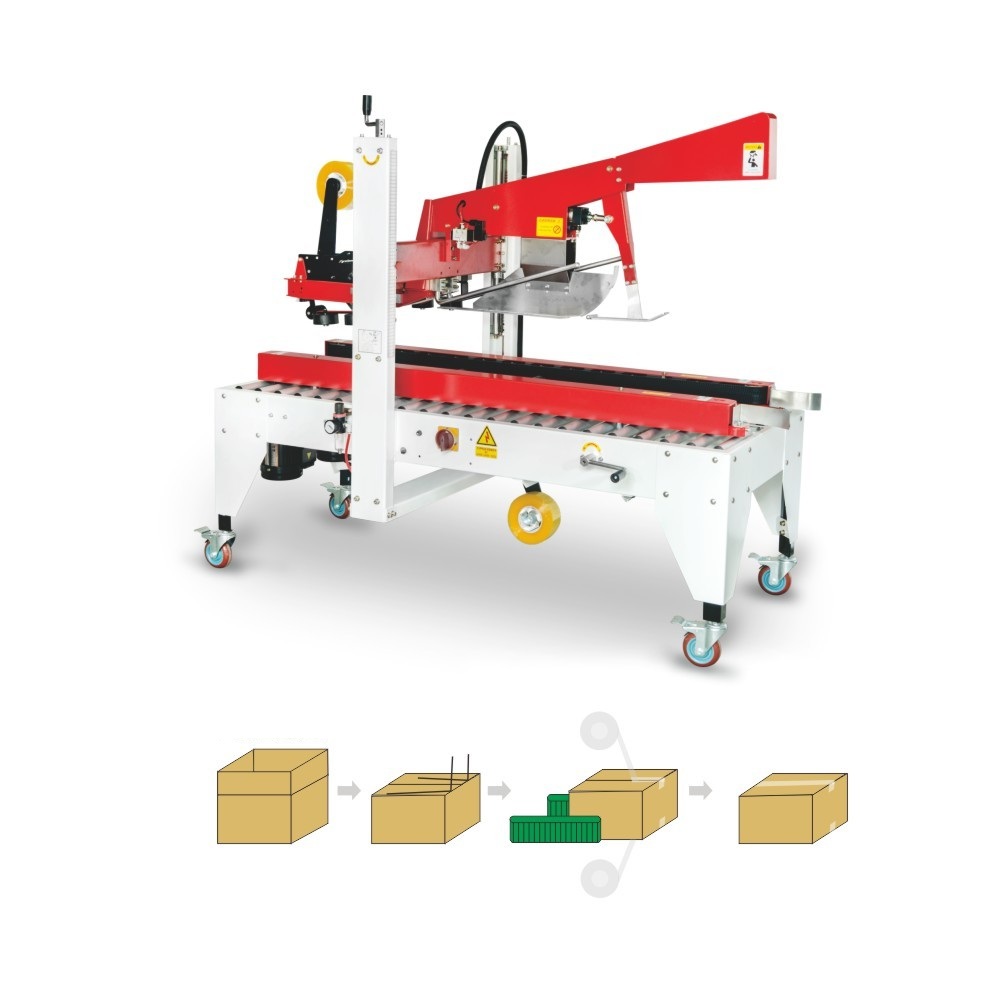

Semi-automatic flaps folding Carton Sealer
- Specifications: Minimum box size: L200*W120*H120mm
- Maximum box size: L600*W500*H500mm
- Belt speed: 20m/min (10-15 boxes/min)
- Machine dimensions: L1700*W930*H1510mm
- Power supply: 220/380V 50Hz
- Air supply: 6kgf/cm², 40nl/min
- Power consumption: 0.4KW
- Applicable tape width: W48, 60, 75mm (optional)
- Machine weight: 180KG
Description
Model: SDW-FC500
Machine Features:
◆ Standard function carton sealer
◆ Can be used with a machine or standalone, manually folding the top cover, completing the "I"-shaped (carton’s middle-line) sealing of the top and bottom in one go.
◆ Manual width and height adjustment when changing specifications
◆ Dual side belt drive system
◆ Standard working height 600mm
