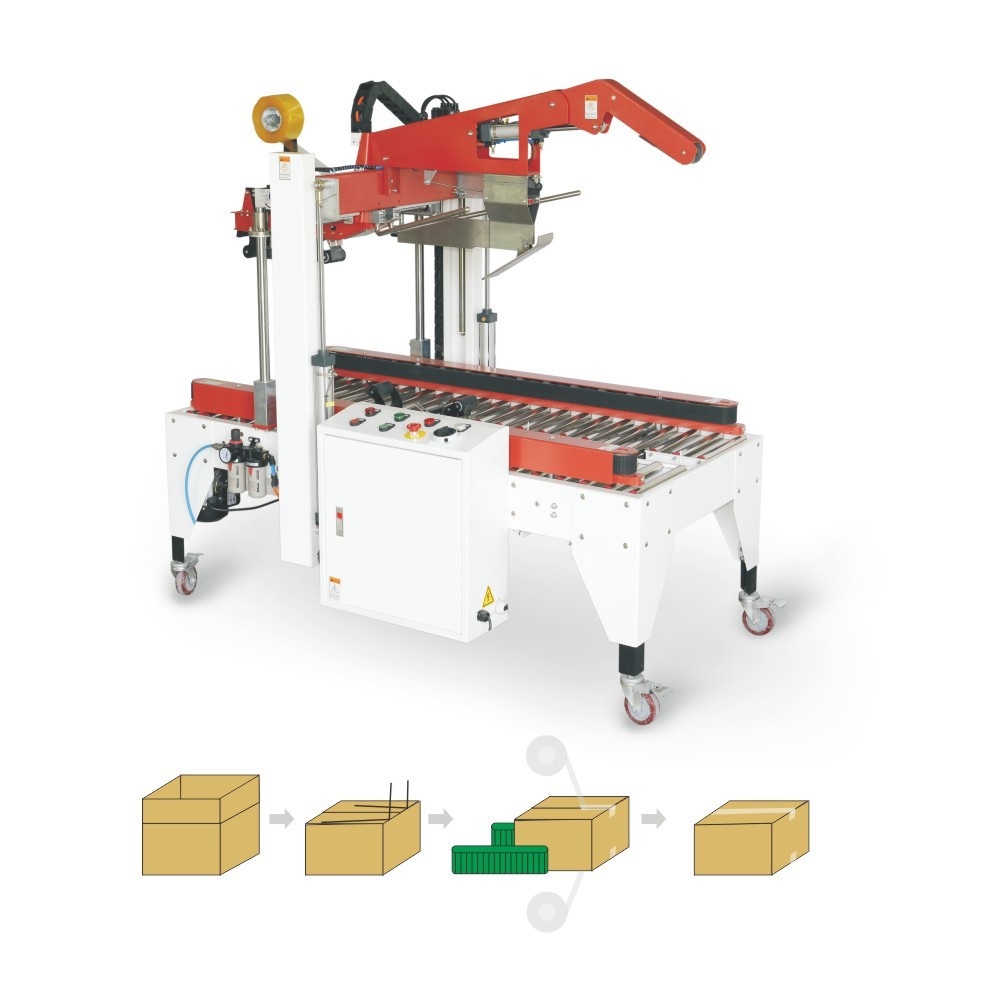

Automatic Flaps folding Carton Sealer
- Minimum box size: L280*W200*H150mm
- Maximum box size: L600*W500*H500mm
- Belt speed: 20m/min
- Machine dimensions: L1700*W920*H1450mm
- Power supply: 380V 50Hz
- Air supply: 6kgf/cm², 100nl/min
- Power consumption: 0.4KW
- Applicable tape width: W48, 60, 75mm (optional)
- Machine weight: 280KG
Description
Model: SDW-FI500
◆ Suitable for handling multiple box sizes simultaneously
◆ Fully automatic width and height adjustment when changing specifications
◆ Dual side belt drive system
◆ Can be used inline or standalone, automatic top flap folding, completes the "I"-shaped (carton’s middle-line) sealing of the top and bottom in one go
◆ Standard working height 600mm
◆ Precision and durable tape head, smooth operation, long service life
◆ Custom specifications available upon request
Notes:
All dimensions are in millimeters (mm)
Belt speed in meters per minute (m/min)
Air pressure requirement: 6kgf/cm²
Air consumption: 100nl/min
