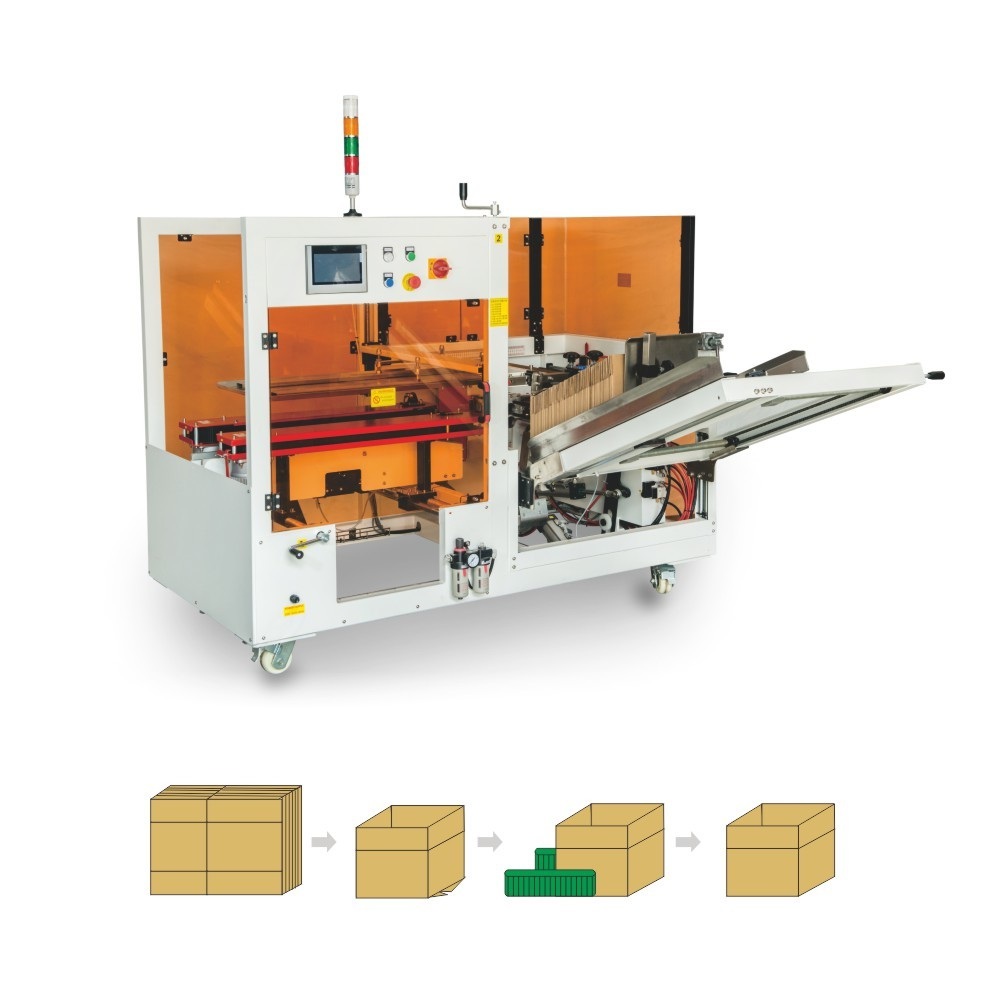

Carton Forming bottom sealer
- Box Size Capacity:
- Length (L): 280-500mm
- Width (W): 160-400mm
- L+W: 510-1000mm
- H+W/2: 300-620mm
- Technical Specifications:
- Forming speed: 8-10 boxes/min (stable)
- Machine dimensions: L2050*W1950*H1450mm
- Power supply: 220/380V 50Hz
- Air supply: 6kgf/cm², 450nl/min
- Power consumption: 0.4KW
- Applicable tape width: W48, 60, 75mm (optional)
- Machine weight: 400KG
- Working height: 650mm
Description
Model: SDW-K20TX
Product Features:
◆ Standard automatic carton forming and bottom sealing machine
◆ Pneumatic cylinder forming mechanism
◆ Formation speed varies with box size
◆ Can operate in-line or standalone; completes box picking, forming, bottom folding, and sealing in one process
◆ Warning system for tape and carton shortage
◆ Vertical carton storage allows refilling without stopping machine
◆ Suitable for batch processing of same-size boxes, manual adjustment for size changes
◆ Standard working height of 650mm
Special Notes:
◆ Specific box size list required for proper machine selection
◆ Special box proportions not included in standard specifications:
Narrow-long boxes
Short-high boxes
Low-wide boxes
◆ Custom modifications available for special box requirements
Additional Notes:
All dimensions in millimeters (mm)
Air pressure requirement: 6kgf/cm²
Air consumption: 450nl/min
Vertical storage design for continuous operation
